In every hotel, school, factory, and hospital hot water system, the component most likely to fail — and most often overlooked — is the storage tank.
A leaking tank soaks through floor slabs and destroys electrical equipment; one incident can wipe out half a year's profit. When insulation fails, hot water turns lukewarm and heating energy consumption doubles. When the shell corrodes, rust water flows into every tap downstream, contaminating the entire system.
And then there are the sourcing traps every contractor knows too well: drawings that don't match the site, so the tank won't fit; rough welds that start weeping within six months; "stainless steel" that turns out to be undersized plate with substandard nickel-chromium content, rusting through outdoors in two years.
In most cases, the root cause sits in one place: the sheet metal fabrication of the tank shell.
A properly built insulated water tank = inner liner + insulation layer + outer shell. The shell is far more than cosmetic — it carries four hard requirements:
| Hard Requirement | What the Shell Must Deliver |
|---|---|
| Structural load | Several tonnes of full-tank water pressure, supported by the shell frame and reinforcing ribs |
| Leak-proof sealing | Welds are the #1 failure point — weld quality determines lifespan |
| Insulation integrity | How tightly shell and insulation mate determines heat loss rate |
| Hygiene & safety | 304 stainless surface finish directly affects water quality and cleanability |

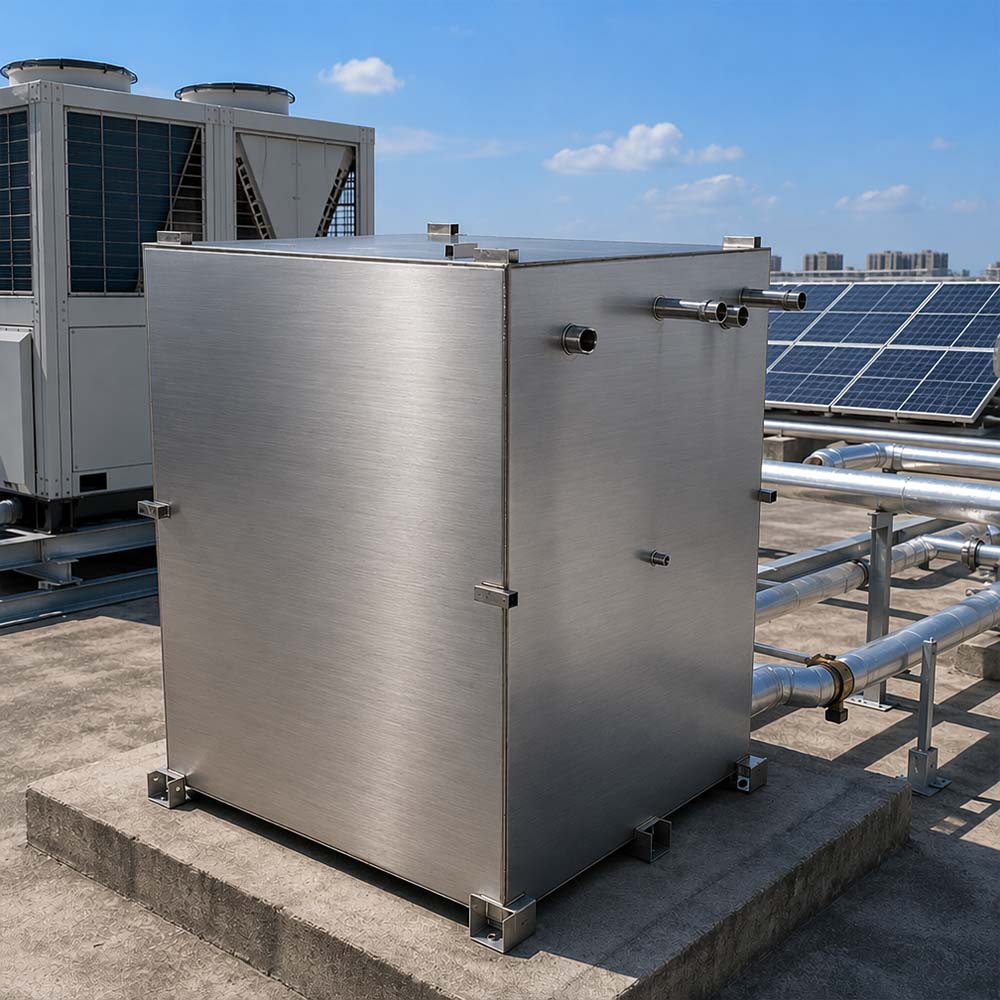

Plain galvanized tanks rust through in two years. Single-wall thin-gauge tanks fail the moment a weld cracks. Double-wall stainless steel insulated tank shells solve load, sealing, insulation, and hygiene in one product — with a typical design life of 15+ years.
Understanding the manufacturing process lets you judge a supplier's real capability before you commit.
Starting from capacity, pressure rating, and pipe positions, we build a 3D model and use nesting software to maximize material yield from every sheet of 304 stainless steel. Pipe openings, flanges, inspection hatches, and reinforcing ribs are all locked in at the drawing stage — a mistake here invalidates everything downstream.

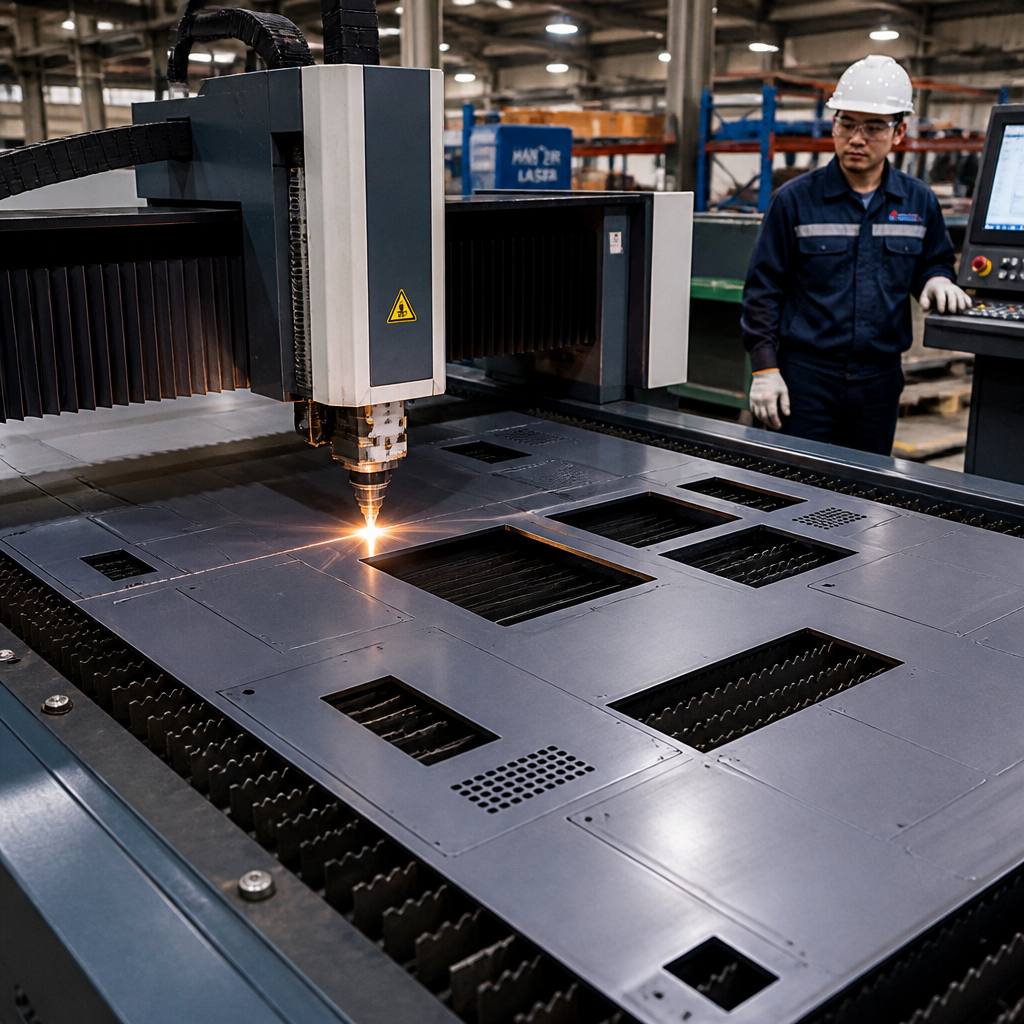

A CNC fiber laser cuts each panel, pipe opening, and bend line in a single pass with ±0.3 mm precision. Accurate pipe positions mean clean weld alignment later — no "close enough" that ends up crooked.
CNC press brakes fold the edges, keeping face sq uareness and diagonal tolerance within millimetres. Bend accuracy decides whether a tank sits "fits like a glove" or "out of square" on site.

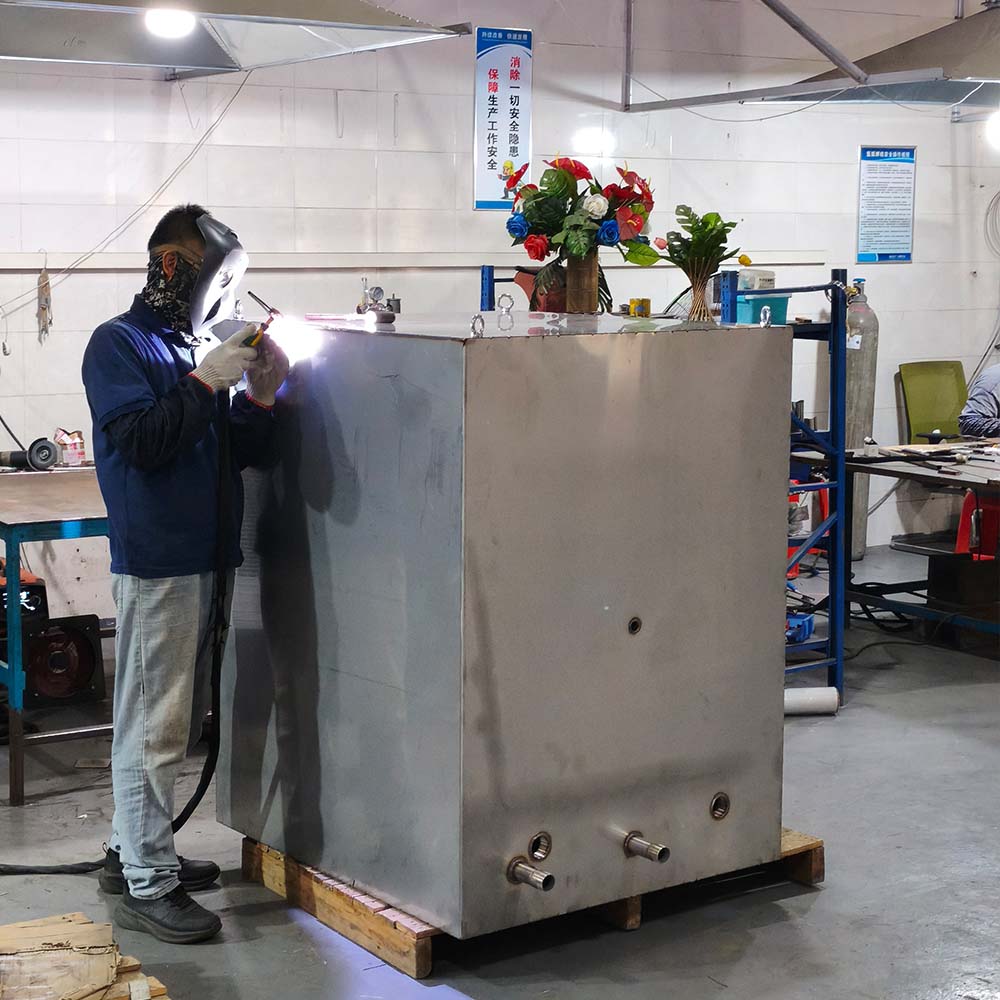

All shell seams are full-penetration welded with argon back-purge protection, producing dense, porosity-free welds. This is the core process behind a "decade without leaks" — and the clearest test of a fabricator's skill. Weld quality separates the professionals from the pretenders at a glance.

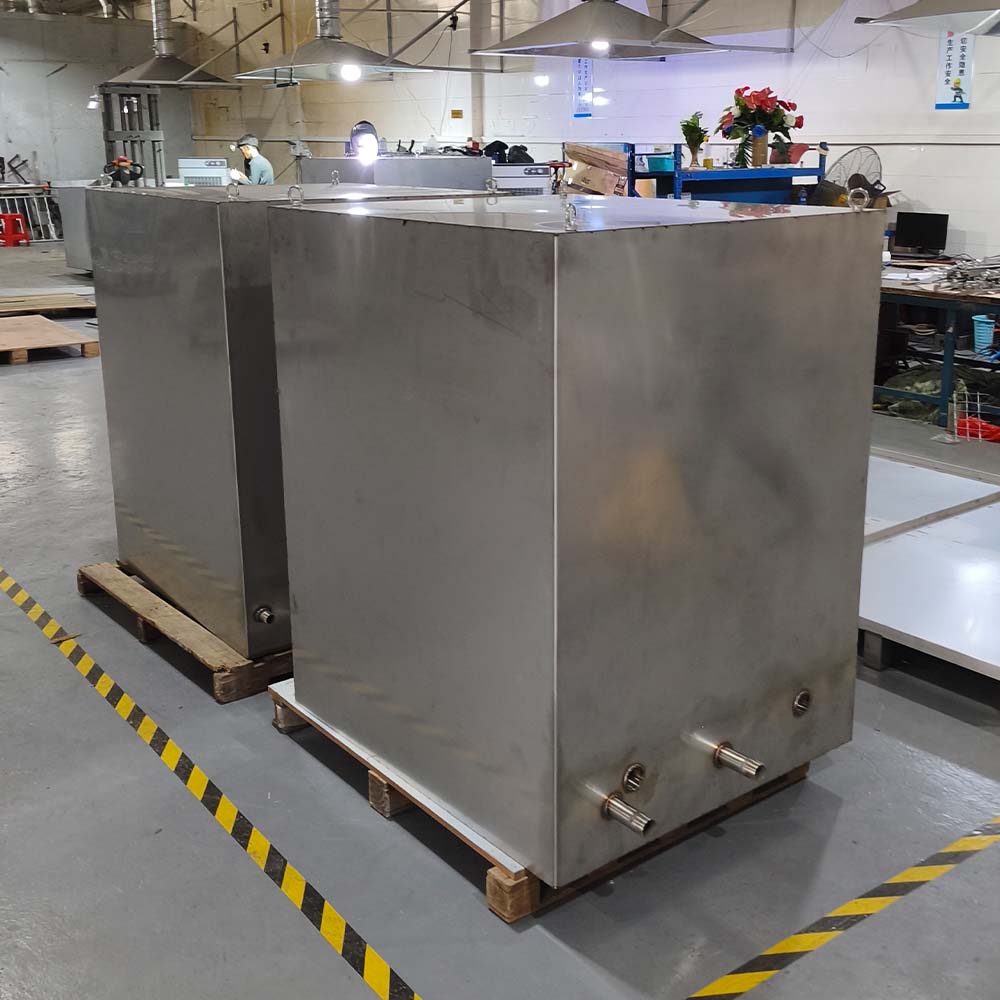

Welds are ground flush with the parent metal, then the surface is brushed with a consistent grain finish. A smooth, uniform shell resists soiling, is easy to clean, and avoids hidden pockets that compromise water hygiene.
Polyurethane foam or rock wool fills the cavity between liner and shell; cladding panels are pressed tight and pipe openings are sealed against the insulation to eliminate cold bridges. Every completed tank undergoes a full-water leak test and insulation check before shipping.
With 18 years in stainless steel sheet metal fabrication, we supply OEM/ODM tank shells to water heater brands and engineering contractors:
We supply water heater, air-source heat pump, and solar hot water brands, with projects delivered across Southeast Asia, the Middle East, and Africa.
Whether you're developing a new hot water product or sourcing a reliable shell supply for your projects, we can fabricate custom stainless steel insulated water tank shells to your drawings or samples.
📩 Send your drawings or sample photos — quote within 24 hours. 📦 Prototype approval before mass production, so your sourcing risk stays low. 🏭 Schedule a video factory tour of our laser cutting and welding lines.
